Panasonic - Wall Splits
Panasonic’s Wall-Split Air Conditioners, available in three series Standard, Premium, Ultra Premium offer powerful cooling and heating solutions with capacities up to 9.5kW Key features include nanoe-X technology (not on standard range) energy-efficient inverter technology, environmentally friendly R32 refrigerant, AEROWINGS for wide airflow (15–25m), ECO Mode with A.I. for up to 20% energy savings, durable Blue Fin coating, and a comprehensive 5-year warranty.
Standard RZ Range
RZ Range features Inverter technology and R32 refrigerant delivering eco-friendly cooling at a competitive price with a reliable performance. Anti-Bacterial Filter eliminates 99% of bacteria and allergens. Powerful mode with AEROWINGS (15m airflow) provides instant, widespread cooling.
Premium Z-Range
Z Range features nanoe™ X technology, nanoe™ X inhibits certain bacteria, viruses, pollens, allergens, mould, and hazardous substances found in PM2.5, providing effective deodorization and improving the air quality. Built-in Wi-Fi with Comfort Cloud App enables remote and voice-activated control and iAUTO-X with AEROWINGS (25m) boosts cooling speed 25%, delivering faster, wider comfort.
Ultra Premium HZ-Range
HZ Range features nanoe-X and built in WiFi as with the Z series range but also adds a humidity sensor. New Humidity Sensors constantly monitor the humidity
levels relative to the temperature and adjust the way the air conditioner operates to maximise comfort levels.
HZ: Ultra Premium Wall-Split
| Series | Model | Description | Cooling (kW) | Heating (kW) | Indoor Dimensions H x W x D (mm) | Outdoor Dimensions H x W x D (mm) | Power Supply (V/Ph/Hz) | Power Supply Connection | Max Amps | Refrigerant | Pipe Sizes (Liquid/Gas mm) | Min/Max Pipe Run (m) | Pre-Charged Run (m) | Add Ref Charge (g/m) | Max Elevation Variance (m) | Weight Indoor/Outdoor (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HZ | CS/CU-HZ25YKR | 2.5kW Ultra Prem. Wall Split | 2.5 | 3.2 | 295 x 870 x 229 | 542 x 780 x 289 | 240/1/50 | Outdoor | 5.4 | R32 | 6.35 / 9.52 | 03 / 20 | 7.5 | 10 | 15 | 10 / 26 |
| HZ | CS/CU-HZ35YKR | 3.5kW Ultra Prem. Wall Split | 3.5 | 4.1 | 295 x 870 x 229 | 542 x 780 x 289 | 240/1/50 | Outdoor | 7.0 | R32 | 6.35 / 9.52 | 03 / 20 | 7.5 | 10 | 15 | 10 / 30 |
| HZ | CS/CU-HZ50YKR | 5.0kW Ultra Prem. Wall Split | 5.0 | 6.0 | 295 x 1040 x 244 | 619 x 824 x 299 | 240/1/50 | Outdoor | 10.7 | R32 | 6.35 / 12.70 | 03 / 30 | 10 | 15 | 15 | 12 / 35 |
| HZ | CS/CU-HZ71YKR | 7.1kW Ultra Prem. Wall Split | 7.1 | 8.0 | 295 x 1040 x 244 | 795 x 875 x 320 | 240/1/50 | Outdoor | 13.0 | R32 | 6.35 / 15.88 | 03 / 30 | 10 | 25 | 15 | 13 / 51 |
| HZ | CS/CU-HZ80YKR | 8.0kW Ultra Prem. Wall Split | 8.0 | 9.0 | 295 x 1040 x 244 | 795 x 875 x 320 | 240/1/50 | Outdoor | 15.0 | R32 | 6.35 / 15.88 | 03 / 30 | 10 | 25 | 20 | 13 / 51 |
Z: Premium Wall-Split
| Series | Model | Description | Cooling (kW) | Heating (kW) | Indoor Dimensions H x W x D (mm) | Outdoor Dimensions H x W x D (mm) | Power Supply (V/Ph/Hz) | Power Supply Connection | Max Amps | Refrigerant | Pipe Sizes (Liquid/Gas mm) | Min/Max Pipe Run (m) | Pre-Charged Run (m) | Add Ref Charge (g/m) | Max Elevation Variance (m) | Weight Indoor/Outdoor (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Z | CS/CU-Z25AKR | 2.5kW Deluxe Wall Split | 2.5 | 3.0 | 290 x 779 x 209 | 542 x 780 x 289 | 240/1/50 | Outdoor | 6.3 | R32 | 6.35 / 9.52 | 03 / 20 | 7.5 | 10 | 15 | 8 / 25 |
| Z | CS/CU-Z35AKR | 3.5kW Deluxe Wall Split | 3.5 | 4.0 | 290 x 779 x 209 | 542 x 780 x 289 | 240/1/50 | Outdoor | 7.2 | R32 | 6.35 / 9.52 | 03 / 20 | 7.5 | 10 | 15 | 8 / 25 |
| Z | CS/CU-Z42AKR | 4.2kW Deluxe Wall Split | 4.2 | 5.0 | 290 x 779 x 209 | 542 x 780 x 289 | 240/1/50 | Outdoor | 8.9 | R32 | 6.35 / 12.70 | 03 / 20 | 7.5 | 10 | 15 | 8 / 31 |
| Z | CS/CU-Z50AKR | 5.0kW Deluxe Wall Split | 5.0 | 6.0 | 290 x 779 x 209 | 619 x 824 x 299 | 240/1/50 | Outdoor | 11.0 | R32 | 6.35 / 12.70 | 03 / 30 | 10 | 15 | 15 | 8 / 32 |
| Z | CS/CU-Z60AKR | 6.0kW Deluxe Wall Split | 6.0 | 6.5 | 295 x 1040 x 244 | 619 x 824 x 299 | 240/1/50 | Outdoor | 11.6 | R32 | 6.35 / 12.70 | 03 / 30 | 10 | 15 | 15 | 12 / 35 |
| Z | CS/CU-Z71AKR | 7.1kW Deluxe Wall Split | 7.1 | 8.0 | 295 x 1040 x 244 | 619 x 875 x 320 | 240/1/50 | Outdoor | 14.8 | R32 | 6.35 / 15.88 | 03 / 30 | 10 | 25 | 20 | 13 / 45 |
| Z | CS/CU-Z80YKR | 8.0kW Deluxe Wall Split | 8.0 | 9.0 | 295 x 1040 x 244 | 795 x 875 x 320 | 240/1/50 | Outdoor | 15.8 | R32 | 6.35 / 15.88 | 03 / 30 | 10 | 25 | 20 | 13 / 60 |
| Z | CS/CU-Z95AKR | 9.5kW Deluxe Wall Split | 9.5 | 10.3 | 309 x 1212 x 269 | 795 x 875 x 320 | 240/1/50 | Outdoor | 16.6 | R32 | 6.35 / 15.88 | 03 / 30 | 10 | 25 | 20 | 17 / 55 |

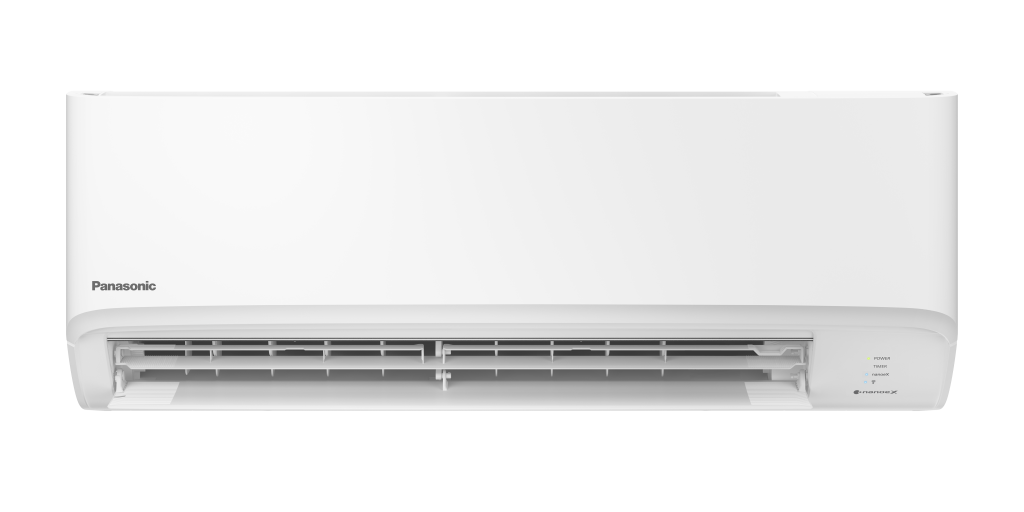

| Z | CS/CU-Z25XKR | 2.5kW Deluxe Wall Split | 2.5 | 3.0 | 290 x 779 x 209 | 542 x 780 x 289 | 240/1/50 | Outdoor | 6.4 | R32 | 6.35 / 9.52 | 03 / 20 | 7.5 | 10 | 15 | 8 / 25 |
| Z | CS/CU-Z35XKR | 3.5kW Deluxe Wall Split | 3.5 | 4.0 | 290 x 779 x 209 | 542 x 780 x 289 | 240/1/50 | Outdoor | 7.2 | R32 | 6.35 / 9.52 | 03 / 20 | 7.5 | 10 | 15 | 8 / 25 |
| Z | CS/CU-Z42XKR | 4.2kW Deluxe Wall Split | 4.2 | 5.1 | 290 x 779 x 209 | 619 x 824 x 229 | 240/1/50 | Outdoor | 8.9 | R32 | 6.35 / 12.70 | 03 / 20 | 7.5 | 10 | 15 | 8 / 32 |
| Z | CS/CU-Z50XKR | 5.0kW Deluxe Wall Split | 5.0 | 6.0 | 290 x 779 x 209 | 619 x 824 x 299 | 240/1/50 | Outdoor | 11.0 | R32 | 6.35 / 12.70 | 03 / 30 | 10 | 15 | 15 | 8 / 32 |
| Z | CS/CU-Z60XKR | 6.0kW Deluxe Wall Split | 6.0 | 6.5 | 295 x 1040 x 244 | 619 x 824 x 299 | 240/1/50 | Outdoor | 11.6 | R32 | 6.35 / 12.70 | 03 / 30 | 10 | 15 | 15 | 12 / 35 |
| Z | CS/CU-Z71XKR | 7.1kW Deluxe Wall Split | 7.1 | 8.0 | 295 x 1040 x 244 | 619 x 875 x 320 | 240/1/50 | Outdoor | 14.8 | R32 | 6.35 / 15.88 | 03 / 30 | 10 | 25 | 20 | 13 / 45 |
| Z | CS/CU-Z80XKR | 8.0kW Deluxe Wall Split | 8.0 | 9.0 | 295 x 1040 x 244 | 795 x 875 x 320 | 240/1/50 | Outdoor | 15.8 | R32 | 6.35 / 15.88 | 03 / 30 | 10 | 25 | 20 | 13 / 60 |
RZ: Standard Wall-Split
| Series | Model | Description | Cooling (kW) | Heating (kW) | Indoor Dimensions H x W x D (mm) | Outdoor Dimensions H x W x D (mm) | Power Supply (V/Ph/Hz) | Power Supply Connection | Max Amps | Refrigerant | Pipe Sizes (Liquid/Gas mm) | Min/Max Pipe Run (m) | Pre-Charged Run (m) | Add Ref Charge (g/m) | Max Elevation Variance (m) | Weight Indoor/Outdoor (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RZ | CS/CU-RZ25AKR | 2.5kW Wall Split | 2.5 | 3.0 | 290 x 779 x 209 | 542 x 780 x 289 | 240/1/50 | Outdoor | 6.3 | R32 | 6.35 / 9.52 | 03 / 20 | 7.5 | 10 | 15 | 8 / 25 |
| RZ | CS/CU-RZ35AKR | 3.5kW Wall Split | 3.5 | 3.7 | 290 x 779 x 209 | 542 x 780 x 289 | 240/1/50 | Outdoor | 7.2 | R32 | 6.35 / 9.52 | 03 / 20 | 7.5 | 10 | 15 | 8 / 31 |
| RZ | CS/CU-RZ42AKR | 4.2kW Wall Split | 4.2 | 5.0 | 290 x 779 x 209 | 542 x 780 x 289 | 240/1/50 | Outdoor | 8.9 | R32 | 6.35 / 12.70 | 03 / 20 | 7.5 | 10 | 15 | 8 / 31 |
| RZ | CS/CU-RZ50AKR | 5.0kW Wall Split | 5.0 | 6.0 | 290 x 779 x 209 | 619 x 824 x 299 | 240/1/50 | Outdoor | 11.0 | R32 | 6.35 / 12.70 | 03 / 30 | 10 | 15 | 15 | 8 / 35 |
| RZ | CS/CU-RZ60AKR | 6.0kW Wall Split | 6.0 | 6.5 | 295 x 1040 x 244 | 619 x 824 x 299 | 240/1/50 | Outdoor | 11.6 | R32 | 6.35 / 12.70 | 03 / 30 | 10 | 15 | 15 | 12 / 35 |
| RZ | CS/CU-RZ71AKR | 7.1kW Wall Split | 7.1 | 8.0 | 295 x 1040 x 244 | 695 x 875 x 320 | 240/1/50 | Outdoor | 14.8 | R32 | 6.35 / 15.88 | 03 / 30 | 10 | 25 | 20 | 13 / 45 |
| RZ | CS/CU-RZ80YKR | 8.0kW Wall Split | 8.0 | 9.0 | 295 x 1040 x 244 | 795 x 875 x 320 | 240/1/50 | Outdoor | 15.8 | R32 | 6.35 / 15.88 | 03 / 30 | 10 | 25 | 20 | 13 / 60 |

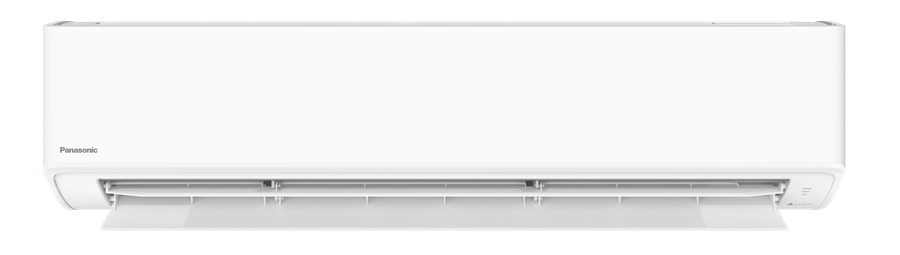

| RZ | CS/CU-RZ95AKR | 9.5kW Wall Split | 9.5 | 10.3 | 309 x 1212 x 269 | 795 x 875 x 320 | 240/1/50 | Outdoor | 16.6 | R32 | 6.35 / 15.88 | 03 / 30 | 10 | 25 | 20 | 17 / 55 |
| RZ | CS/CU-RZ25XKR | 2.5kW Wall Split | 2.5 | 3.0 | 290 x 779 x 209 | 542 x 780 x 289 | 240/1/50 | Outdoor | 6.4 | R32 | 6.35 / 9.52 | 03 / 20 | 7.5 | 10 | 15 | 8 / 25 |
| RZ | CS/CU-RZ35XKR | 3.5kW Wall Split | 3.5 | 3.7 | 290 x 779 x 209 | 542 x 780 x 289 | 240/1/50 | Outdoor | 7.2 | R32 | 6.35 / 9.52 | 03 / 20 | 7.5 | 10 | 15 | 8 / 31 |
| RZ | CS/CU-RZ42XKR | 4.2kW Wall Split | 4.2 | 5.1 | 290 x 779 x 209 | 619 x 824 x 299 | 240/1/50 | Outdoor | 8.9 | R32 | 6.35 / 12.70 | 03 / 20 | 7.5 | 10 | 15 | 8 / 31 |
| RZ | CS/CU-RZ50XKR | 5.0kW Wall Split | 5.0 | 6.0 | 290 x 779 x 209 | 619 x 824 x 299 | 240/1/50 | Outdoor | 11.0 | R32 | 6.35 / 12.70 | 03 / 30 | 10 | 15 | 15 | 8 / 35 |
| RZ | CS/CU-RZ60XKR | 6.0kW Wall Split | 6.0 | 6.5 | 295 x 1040 x 244 | 619 x 824 x 299 | 240/1/50 | Outdoor | 11.6 | R32 | 6.35 / 12.70 | 03 / 30 | 10 | 15 | 15 | 12 / 35 |
| RZ | CS/CU-RZ71XKR | 7.1kW Wall Split | 7.1 | 8.0 | 295 x 1040 x 244 | 695 x 875 x 320 | 240/1/50 | Outdoor | 14.8 | R32 | 6.35 / 15.88 | 03 / 30 | 10 | 25 | 20 | 13 / 45 |
| RZ | CS/CU-RZ80XKR | 8.0kW Wall Split | 8.0 | 9.0 | 295 x 1040 x 244 | 795 x 875 x 320 | 240/1/50 | Outdoor | 15.8 | R32 | 6.35 / 15.88 | 03 / 30 | 10 | 25 | 20 | 13 / 60 |
Commercial Deluxe Wall-Split
| Series | Model | Description | Cooling (kW) | Heating (kW) | Indoor Dimensions H x W x D (mm) | Outdoor Dimensions H x W x D (mm) | Power Supply (V/Ph/Hz) | Power Supply Connection | Max Amps | Refrigerant | Pipe Sizes (Liquid/Gas mm) | Min/Max Pipe Run (m) | Pre-Charged Run (m) | Add Ref Charge (g/m) | Max Elevation Variance (m) | Weight Indoor/Outdoor (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Deluxe | S-100PK3R / U-100PZ3R5 | 9.5kW Wall Split | 9.5 | 9.5 | 302 x 1120 x 236 | 996 x 980 x 370 | 240/1/50 | Outdoor | 0.66 / 25.0 | R32 | 9.52 / 15.88 | 05 / 50 | 30 | 45 | 15/30 | 14 / 90 |
| Deluxe | S-100PK3R / U-100PZ3R8 | 9.5kW Wall Split | 9.5 | 9.5 | 302 x 1120 x 236 | 996 x 980 x 370 | 415/3/50 | Outdoor | 0.66 / 9.0 | R32 | 9.52 / 15.88 | 05 / 50 | 30 | 45 | 15/30 | 14 / 90 |
