Panasonic - Under Ceiling

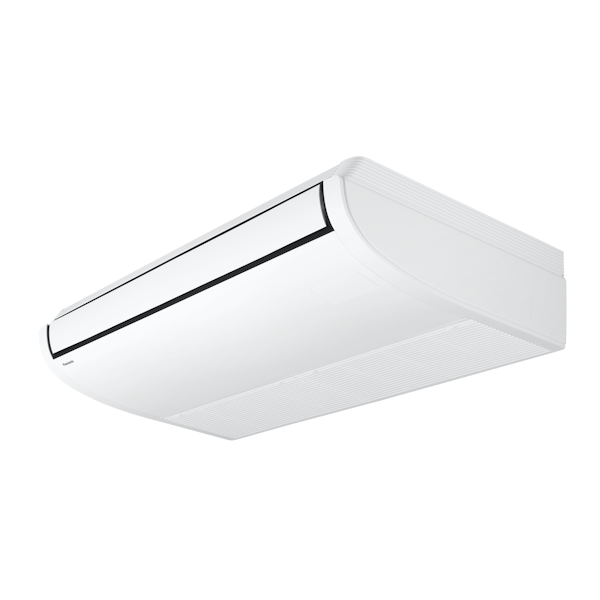

With its streamlined, one-motion form, the unit looks thin and compact when installed for a neat appearance in any room. When not operating, the louver closes to provide an elegant look while keeping the unit clean. Available in 6.0kW to 13.6kW.
nanoe™ X Air Purification Technology
A Next-Generation Remote Control Solution Optimised for Usability, Whatever Your Needs
Long-distance Airflow Distribution
Maintain quality air 24-hours a day with nanoe™ X technology. nanoe™ X inhibits certain bacteria, viruses, pollens, allergens, mould, and hazardous substances found in PM2.5, providing effective deodorization and improving the air quality.
CONEX goes beyond simple remote control to combine sophistication with simplicity, offering IoT integration that connects directly to a variety of apps for next-generation solutions.
The shape of the outlet has been optimised to provide long-distance air flow distribution. Even in long rooms, air flow reaches every corner for exceptionally comfortable air conditioning.
Panasonic Under Ceiling (Compact)
| Series | Model | Description | Cooling (kW) | Heating (kW) | Airflow (l/sec) H/M/L | Indoor Dimensions H x W x D (mm): | Outdoor Dimensions H x W x D (mm): | Power Supply (V/Ph/Hz) | Power Supply Connection | Max Amps (Outdoor) | Refrigerant Type | Pipe Sizes (Liquid/Gas mm) | Min/Max Pipe Run (m) | Pre-Charged Run (m) | Add Ref Charge (g/m) | Max Elevation Variance (m) | Weight Indoor/Outdoor (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PT / PZ | S-6071PT3E / U-60PZ3R5 | 6.0kW Under Ceiling | 6 | 6 | 334 | 235 x 1275 x 690 | 695 x 875 x 320 | 240/1/50 | Outdoor | 13.1 | R32 | 6.35 / 12.7 | 03 / 40 | 30 | 15 | 15 / 30 | 34 / 43 |
| PT / PZ | S-6071PT3E / U-71PZ3R5 | 7.0kW Under Ceiling | 6.8 | 6.8 | 350 | 235 x 1275 x 690 | 695 x 875 x 320 | 240/1/50 | Outdoor | 14.8 | R32 | 6.35 / 15.88 | 03 / 40 | 30 | 17 | 15 / 30 | 34 / 50 |
| PT / PZ | S-1014PT3E / U-100PZ3R5 | 10.0kW Under Ceiling | 10 | 10 | 501 | 235 x 1590 x 690 | 996 x 980 x 370 | 240/1/50 | Outdoor | 27.9 | R32 | 9.52 / 15.88 | 05 / 50 | 30 | 45 | 15 / 30 | 40 / 83 |
| PT / PZ | S-1014PT3E / U-100PZ3R8 | 10.0kW Under Ceiling 3ph | 10 | 10 | 501 | 235 x 1590 x 690 | 996 x 980 x 370 | 415/3/50 | Outdoor | 11.9 | R32 | 9.52 / 15.88 | 05 / 50 | 30 | 45 | 15 / 30 | 40 / 83 |
| PT / PZ | S-1014PT3E / U-125PZ3R5 | 12.5kW Under Ceiling | 12.5 | 12.5 | 501 | 235 x 1590 x 690 | 996 x 980 x 370 | 240/1/50 | Outdoor | 31.9 | R32 | 9.52 / 15.88 | 05 / 50 | 30 | 45 | 15 / 30 | 40 / 87 |
| PT / PZ | S-1014PT3E / U-125PZ3R8 | 12.5kW Under Ceiling 3ph | 12.5 | 12.5 | 501 | 235 x 1590 x 690 | 996 x 980 x 370 | 415/3/50 | Outdoor | 12.9 | R32 | 9.52 / 15.88 | 05 / 50 | 30 | 45 | 15 / 30 | 40 / 87 |
| PT / PZ | S-1014PT3E / U-140PZ3R5 | 13.6kW Under Ceiling | 13.6 | 14 | 567 | 235 x 1590 x 690 | 996 x 980 x 370 | 240/1/50 | Outdoor | 32.9 | R32 | 9.52 / 15.88 | 05 / 50 | 30 | 45 | 15 / 30 | 40 / 87 |
| PT / PZ | S-1014PT3E / U-140PZ3R8 | 13.6kW Under Ceiling 3ph | 13.6 | 14 | 567 | 235 x 1590 x 690 | 996 x 980 x 370 | 415/3/50 | Outdoor | 13.4 | R32 | 9.52 / 15.88 | 05 / 50 | 30 | 45 | 15 / 30 | 40 / 87 |
Panasonic Under Ceiling (Deluxe)
| Series | Model | Description | Cooling (kW) | Heating (kW) | Airflow (l/sec) H/M/L | Indoor Dimensions H x W x D (mm): | Outdoor Dimensions H x W x D (mm): | Power Supply (V/Ph/Hz) | Power Supply Connection | Max Amps (Outdoor) | Refrigerant Type | Pipe Sizes (Liquid/Gas mm) | Min/Max Pipe Run (m) | Pre-Charged Run (m) | Add Ref Charge (g/m) | Max Elevation Variance (m) | Weight Indoor/Outdoor (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

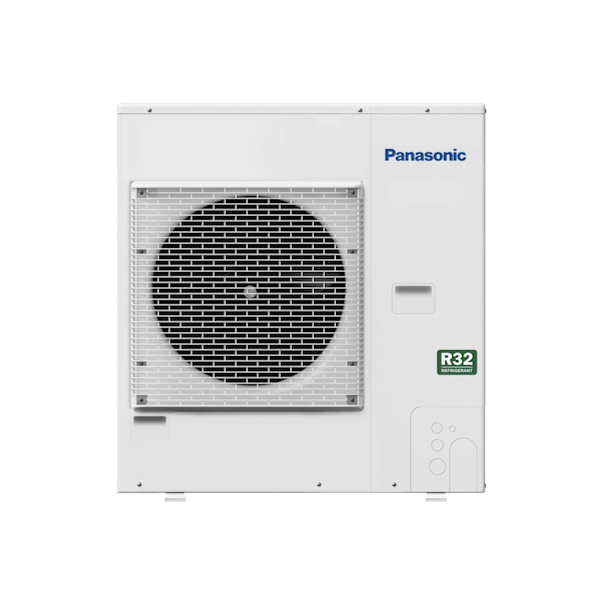

| PT / PZH | S-6071PT3E / U-71PZH3R5 | 6.8kW Deluxe Under Ceiling | 6.8 | 8 | 350 | 235 x 1275 x 690 | 996 x 940 x 340 | 240/1/50 | Outdoor | 19.6 | R32 | 9.52 / 15.88 | 05 / 50 | 30 | 45 | 15 / 30 | 34 / 66 |
| PT / PZH | S-1014PT3E / U-100PZH3R5 | 9.5kW Deluxe Under Ceiling | 9.5 | 11.2 | 501 | 235 x 1590 x 690 | 1416 x 940 x 340 | 240/1/50 | Outdoor | 27.8 | R32 | 9.52 / 15.88 | 05 / 85 | 30 | 45 | 15 / 30 | 40 / 99 |
| PT / PZH | S-1014PT3E / U-100PZH3R8 | 9.5kW Deluxe Under Ceiling 3ph | 9.5 | 11.2 | 501 | 235 x 1590 x 690 | 1416 x 940 x 340 | 415/3/50 | Outdoor | 9.8 | R32 | 9.52 / 15.88 | 05 / 85 | 30 | 45 | 15 / 30 | 40 / 99 |
| PT / PZH | S-1014PT3E / U-125PZH3R5 | 12.1kW Deluxe Under Ceiling | 12.1 | 14 | 501 | 235 x 1590 x 690 | 1416 x 940 x 340 | 240/1/50 | Outdoor | 30.8 | R32 | 9.52 / 15.88 | 05 / 85 | 30 | 45 | 15 / 30 | 40 / 99 |
| PT / PZH | S-1014PT3E / U-125PZH3R8 | 12.1kW Deluxe Under Ceiling 3ph | 12.1 | 14 | 501 | 235 x 1590 x 690 | 1416 x 940 x 340 | 415/3/50 | Outdoor | 10.8 | R32 | 9.52 / 15.88 | 05 / 85 | 30 | 45 | 15 / 30 | 40 / 99 |

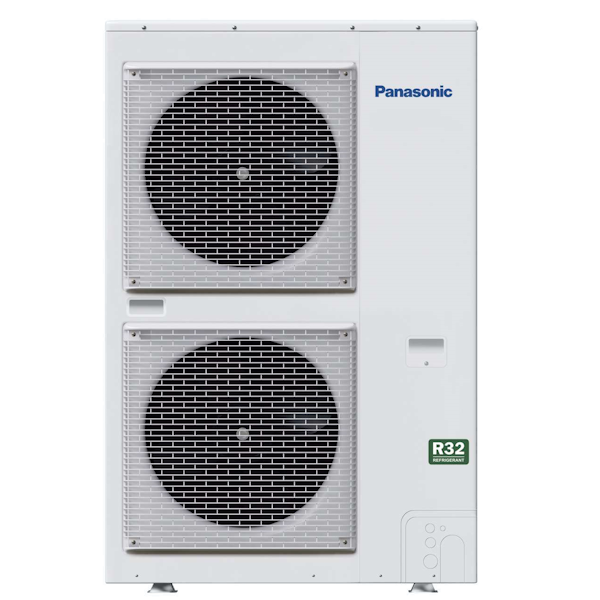

| PT / PZH | S-1014PT3E / U-140PZH3R5 | 13.4kW Deluxe Under Ceiling | 13.4 | 16 | 567 | 235 x 1590 x 690 | 1416 x 940 x 340 | 240/1/50 | Outdoor | 32.8 | R32 | 9.52 / 15.88 | 05 / 85 | 30 | 45 | 15 / 30 | 40 / 99 |
| PT / PZH | S-1014PT3E / U-140PZH3R8 | 13.4kW Deluxe Under Ceiling 3ph | 13.4 | 16 | 567 | 235 x 1590 x 690 | 1416 x 940 x 340 | 415/3/50 | Outdoor | 11.4 | R32 | 9.52 / 15.88 | 05 / 85 | 30 | 45 | 15 / 30 | 40 / 99 |
