Panasonic - Multi Split

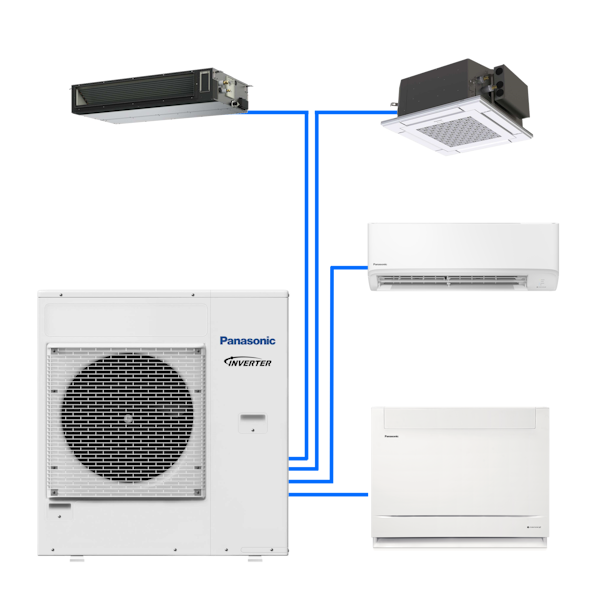

Panasonic’s Multi Split Air Conditioning System is a highly efficient multi-split system designed to be highly durable under a wide range of harsh conditions. Mix and match with a selection of 4 types of indoor units; Wall Mounted, Ultra Slim Ducted, Mini Cassette, Floor Console. The outdoor unit’s wide cooling capacity, available in five sizes from 5.2kW to 10.0kW, offers greater installation flexibility for large spaces or high occupancy levels and supports up to five indoor units with independent operational control.
nanoe™ X Air Purification Technology
One System that Houses All
Comfort Cloud App
Maintain quality air 24-hours a day with nanoe™ X technology. nanoe™ X inhibits certain bacteria, viruses, pollens, allergens, mould, and hazardous substances found in PM2.5, providing effective deodorization and improving the air quality. * not available on standard wall mount & bulk head units.
Flexible multi-zone cooling solutions with a single outdoor unit that connects up to five indoor units, each with independent control, and offers a wide selection of indoor unit types across a broad cooling capacity range — all while saving valuable space in your backyard.
With built-in Wi-Fi on the Z Series and optional Wi-Fi for other indoor unit types, the Panasonic Comfort Cloud App lets you connect and control your multi-zone air conditioning system from anywhere—whether you’re at home or on the go—using a single mobile device.
VBR: Multi-Splits Condensing Units
| Series | Model | Description | Cooling (kW) | Heating (kW) | Outdoor Dimensions H x W x D (mm) | Power Supply (V/Ph/Hz) | Power Supply Connection | Max Amps | Refrigerant | Pipe Sizes (Liquid/Gas mm) | Min/Max Pipe Run (m) | Pre-Charged Run (m) | Add Ref Charge (g/m) | Max Elevation Variance (m) | Outdoor (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VBR | CU-2Z52VBR | Outdoor 5.2kW 2 Heads | 5.2 | 6.1 | 619 x 824 x 299 | 240/1/50 | Outdoor | 11.5 | R32 | 6.35 / 9.52 | 03 / 20 / 30 | 20 | 15 | 10 | 39 |
| VBR | CU-3Z54VBR | Outdoor 5.4kW 3 Heads | 5.4 | 7 | 795 x 875 x 320 | 240/1/50 | Outdoor | 15.2 | R32 | 6.35 / 9.52 | 03 / 25 / 50 | 30 | 10 | 10 | 71 |
| VBR | CU-4Z71VBR | Outdoor 7.1kW 4 Heads | 7.1 | 8.5 | 795 x 875 x 320 | 240/1/50 | Outdoor | 15.6 | R32 | 6.35 / 9.52 | 03 / 25 / 60 | 30 | 20 | 15 | 72 |
| VBR | CU-4Z80VBR | Outdoor 8.0kW 4 Heads | 8 | 9.4 | 999 x 940 x 340 | 240/1/50 | Outdoor | 19 | R32 | 6.35 / 9.52 | 03 / 25 / 70 | 45 | 20 | 15 | 80 |
| VBR | CU-5Z100VBR | Outdoor 10.0kW 5 Heads | 10 | 12 | 999 x 940 x 340 | 240/1/50 | Outdoor | 21.3 | R32 | 6.35 / 9.52 | 03 / 25 / 80 | 45 | 20 | 15 | 81 |
Z: Deluxe Wall-Mounted
| Series | Model | Description | Cooling (kW) | Heating (kW) | Indoor Dimensions H x W x D (mm) | Power Supply (V/Ph/Hz) | Power Supply Connection | Max Amps | Refrigerant | Pipe Sizes (Liquid/Gas mm) | Weight Indoor (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Z | CS-Z25AKRW | 2.5kW Deluxe Wall Mounted | 2.5 | 3.0 | 290 x 779 x 209 | 240/1/50 | Outdoor | - | R32 | 6.35 / 9.52 | 8 |
| Z | CS-Z35AKRW | 3.5kW Deluxe Wall Mounted | 3.5 | 4.0 | 290 x 779 x 209 | 240/1/50 | Outdoor | - | R32 | 6.35 / 9.52 | 8 |
| Z | CS-Z42AKRW | 4.2kW Deluxe Wall Mounted | 4.2 | 5.0 | 290 x 779 x 209 | 240/1/50 | Outdoor | - | R32 | 6.35 / 12.70 | 8 |
| Z | CS-Z50AKRW | 5.0kW Deluxe Wall Mounted | 5.0 | 6.0 | 290 x 779 x 209 | 240/1/50 | Outdoor | - | R32 | 6.35 / 12.70 (FCU require CZ-MA1P) | 8 |
| Z | CS-Z60AKRW | 6.0kW Deluxe Wall Mounted | 6.0 | 6.5 | 295 x 1040 x 244 | 240/1/50 | Outdoor | - | R32 | 6.35 / 12.70 (CU require CZ-MA2P) | 12 |
| Z | CS-Z71AKRW | 7.1kW Deluxe Wall Mounted | 7.1 | 8.0 | 295 x 1040 x 244 | 240/1/50 | Outdoor | - | R32 | 6.35 / 15.88 (FCU require CZ-MA2P & CU require CZ-MA3P) | 13 |
| Z | CS-Z25XKRW | 2.5kW Deluxe Wall Mounted | 2.5 | 3.0 | 290 x 779 x 209 | 240/1/50 | Outdoor | - | R32 | 6.35 / 9.52 | 8 |
| Z | CS-Z35XKRW | 3.5kW Deluxe Wall Mounted | 3.5 | 4.0 | 290 x 779 x 209 | 240/1/50 | Outdoor | - | R32 | 6.35 / 9.52 | 8 |
| Z | CS-Z42XKRW | 4.2kW Deluxe Wall Mounted | 4.2 | 5.1 | 290 x 779 x 209 | 240/1/50 | Outdoor | - | R32 | 6.35 / 12.70 (FCU require CZ-MA1P) | 8 |
| Z | CS-Z50XKRW | 5.0kW Deluxe Wall Mounted | 5.0 | 6.0 | 290 x 779 x 209 | 240/1/50 | Outdoor | - | R32 | 6.35 / 12.70 (FCU require CZ-MA1P) | 8 |
| Z | CS-Z60XKRW | 6.0kW Deluxe Wall Mounted | 6.0 | 6.5 | 295 x 1040 x 244 | 240/1/50 | Outdoor | - | R32 | 6.35 / 12.70 (CU require CZ-MA2P) | 12 |
| Z | CS-Z71XKRW | 7.1kW Deluxe Wall Mounted | 7.1 | 8.0 | 295 x 1040 x 244 | 240/1/50 | Outdoor | - | R32 | 6.35 / 15.88 (FCU require CZ-MA2P & CU require CZ-MA3P) | 13 |
RZ/MRZ: Standard Wall-Mounted
| Series | Model | Description | Cooling (kW) | Heating (kW) | Indoor Dimensions H x W x D (mm) | Power Supply (V/Ph/Hz) | Power Supply Connection | Max Amps | Refrigerant | Pipe Sizes (Liquid/Gas mm) | Weight Indoor (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MRZ | CS-MRZ20WKR | 2.0kW Wall Mounted | 2 | 2 | 290 x 779 x 209 | 240/1/50 | Outdoor | - | R32 | 6.35 / 9.52 | 8 |
| RZ | CS-RZ25AKRW | 2.5kW Wall Mounted | 2.5 | 3 | 290 x 779 x 209 | 240/1/50 | Outdoor | - | R32 | 6.35 / 9.52 | 8 |
| RZ | CS-RZ35AKRW | 3.5kW Wall Mounted | 3.5 | 3.7 | 290 x 779 x 209 | 240/1/50 | Outdoor | - | R32 | 6.35 / 9.52 | 8 |
| RZ | CS-RZ42AKRW | 4.2kW Wall Mounted | 4.2 | 5 | 290 x 779 x 209 | 240/1/50 | Outdoor | - | R32 | 6.35 / 12.70 | 8 |
| RZ | CS-RZ50AKRW | 5.0kW Wall Mounted | 5 | 6 | 290 x 779 x 209 | 240/1/50 | Outdoor | - | R32 | 6.35 / 12.70 (FCU require CZ-MA1P) | 8 |
| RZ | CS-RZ60AKRW | 6.0kW Wall Mounted | 6 | 6.5 | 295 x 1040 x 244 | 240/1/50 | Outdoor | - | R32 | 6.35 / 12.70 (CU require CZ-MA2P) | 12 |
| RZ | CS-RZ71AKRW | 7.1kW Wall Mounted | 7.1 | 8 | 295 x 1040 x 244 | 240/1/50 | Outdoor | - | R32 | 6.35 / 15.88 (FCU require CZ-MA2P & CU require CZ-MA3P) | 13 |
| RZ | CS-RZ25XKRW | 2.5kW Wall Mounted | 2.5 | 3 | 290 x 779 x 209 | 240/1/50 | Outdoor | - | R32 | 6.35 / 9.52 | 8 |
| RZ | CS-RZ35XKRW | 3.5kW Wall Mounted | 3.5 | 3.7 | 290 x 779 x 209 | 240/1/50 | Outdoor | - | R32 | 6.35 / 9.52 | 8 |
| RZ | CS-RZ42XKRW | 4.2kW Wall Mounted | 4.2 | 5.1 | 290 x 779 x 209 | 240/1/50 | Outdoor | - | R32 | 6.35 / 12.70 (FCU require CZ-MA1P) | 8 |
| RZ | CS-RZ50XKRW | 5.0kW Wall Mounted | 5 | 6 | 290 x 779 x 209 | 240/1/50 | Outdoor | - | R32 | 6.35 / 12.70 (FCU require CZ-MA1P) | 8 |
| RZ | CS-RZ60XKRW | 6.0kW Wall Mounted | 6 | 6.5 | 295 x 1040 x 244 | 240/1/50 | Outdoor | - | R32 | 6.35 / 12.70 (CU require CZ-MA2P) | 12 |
| RZ | CS-RZ71XKRW | 7.1kW Wall Mounted | 7.1 | 8 | 295 x 1040 x 244 | 240/1/50 | Outdoor | - | R32 | 6.35 / 15.88 (FCU require CZ-MA2P & CU require CZ-MA3P) | 13 |
UD: Ultra Slim Bulkhead
| Series | Model | Description | Cooling (kW) | Heating (kW) | Indoor Dimensions H x W x D (mm) | Power Supply (V/Ph/Hz) | Power Supply Connection | Max Amps | Refrigerant | Pipe Sizes (Liquid/Gas mm) | Supply Air Connection H x W (mm) | Return Air Connection H x W (mm): | Weight Indoor (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UD | CS-Z25UD3RAW | 2.6kW Ultra Slim Bulkhead | 2.6 | 3.3 | 200 x 750 x 640 | 240/1/50 | Outdoor | - | R32 | 6.35 / 9.52 | 144 x 692 | 155 x 704 (no flange) | 19 |
| UD | CS-Z35UD3RAW | 3.7kW Ultra Slim Bulkhead | 3.7 | 4.2 | 200 x 750 x 640 | 240/1/50 | Outdoor | - | R32 | 6.35 / 9.52 | 144 x 692 | 155 x 704 (no flange) | 19 |
| UD | CS-Z50UD3RAW | 5.0kW Ultra Slim Bulkhead | 5 | 6.1 | 200 x 750 x 640 | 240/1/50 | Outdoor | - | R32 | 6.35 / 12.70 (FCU require CZ-MA1P) | 144 x 692 | 155 x 704 (no flange) | 19 |
| UD | CS-Z60UD3RAW | 5.6kW Ultra Slim Bulkhead | 5.6 | 7 | 200 x 750 x 640 | 240/1/50 | Outdoor | - | R32 | 6.35 / 12.70 (CU require CZ-MA2P) | 144 x 692 | 155 x 704 (no flange) | 19 |
PY: Mini Cassette
| Series | Model | Description | Cooling (kW) | Heating (kW) | Indoor Dimensions H x W x D (mm) | Power Supply (V/Ph/Hz) | Power Supply Connection | Max Amps | Refrigerant | Pipe Sizes (Liquid/Gas mm) | Weight Indoor (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| PY | S-25PY3E | 2.5kW Mini Cassette | 2.5 | 3.2 | 243 x 575 x 575 | 240/1/50 | Outdoor | - | R32 | 6.35 / 12.70 (FCU require CZ-MA1P) | 15 |
| PY | S-36PY3E | 3.6kW Mini Cassette | 3.6 | 3.6 | 243 x 575 x 575 | 240/1/50 | Outdoor | - | R32 | 6.35 / 12.70 (FCU require CZ-MA1P) | 15 |
| PY | S-50PY3E | 5.0kW Mini Cassette | 5 | 5 | 243 x 575 x 575 | 240/1/50 | Outdoor | - | R32 | 6.35 / 12.70 (FCU require CZ-MA1P) | 15 |
| PY | S-60PY3E | 6.0kW Mini Cassette | 6 | 6 | 243 x 575 x 575 | 240/1/50 | Outdoor | - | R32 | 6.35 / 12.70 (CU require CZ-MA2P) | 15 |
UF: Floor Console*CU-2Z52VBR only
| Series | Model | Description | Cooling (kW) | Heating (kW) | Indoor Dimensions H x W x D (mm) | Power Supply (V/Ph/Hz) | Power Supply Connection | Max Amps | Refrigerant | Pipe Sizes (Liquid/Gas mm) | Weight Indoor (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| UF | CS-Z25UFRAW | 2.5kW Floor Console | 2.5 | 3.4 | 600 x 750 x 207 | 240/1/50 | Outdoor | 5.9 | R32 | 6.35 / 9.52 | 13 |
| UF | CS-Z35UFRAW | 3.5kW Floor Console | 3.5 | 4.3 | 600 x 750 x 207 | 240/1/50 | Outdoor | 8 | R32 | 6.35 / 9.52 | 13 |
| UF | CS-Z50UFRAW | 5.0kW Floor Console | 5 | 5.6 | 600 x 750 x 207 | 240/1/50 | Outdoor | 11.4 | R32 | 6.35 / 12.70 (FCU require CZ-MA1P) | 13 |
