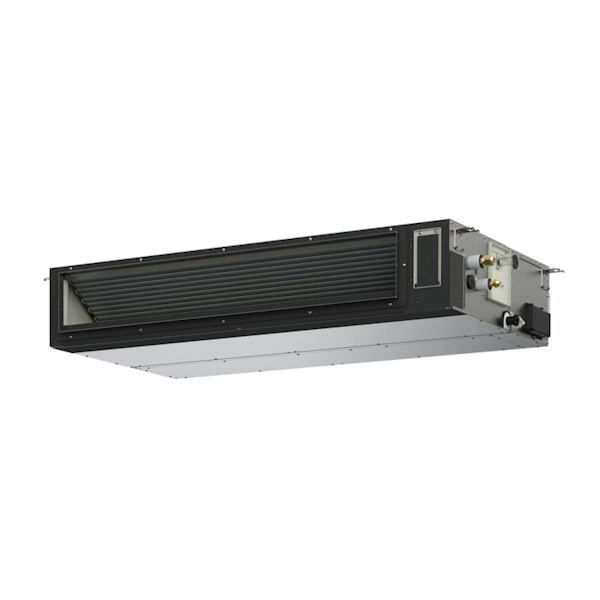

Panasonic - Adaptive Ducted
The Adaptive Ducted System is available in a wide capacity range from 3.6kW to 14kW, making it suitable for various residential and light commercial applications. It features a built-in drain pump and filter for easier installation and maintenance, while its DC fan motor offers variable static pressure control to suit different duct layouts. With the option for rear or bottom return air configurations, it adapts seamlessly to site requirements. Engineered for quiet operation, it delivers powerful yet low-noise performance without compromising comfort or flexibility.
nanoe™ X Air Purification Technology
A Next-Generation Remote Control Solution Optimised for Usability, Whatever Your Needs
Adaptable by Design – Even Vertically
Maintain quality air 24-hours a day with nanoe™ X technology. nanoe™ X inhibits certain bacteria, viruses, pollens, allergens, mould, and hazardous substances found in PM2.5, providing effective deodorization and improving the air quality.
CONEX goes beyond simple remote control to combine sophistication with simplicity, offering IoT integration that connects directly to a variety of apps for next-generation solutions.
The Panasonic Adaptive Unit delivers unmatched flexibility with its ultra-slim 250mm height, vertical installation option, and powerful 150Pa high static fans—perfect for tight spaces and long duct runs.
| Series | Model | Description | Cooling (kW) | Heating (kW) | Airflow (l/sec) H/M/L | Indoor Dimensions H x W x D (mm) | Outdoor Dimensions H x W x D (mm) | Power Supply (V/Ph/Hz) | Power Supply Connection | Max Amps (Indoor) | Max Amps (Outdoor) | Refrigerant | Pipe Sizes (Liquid/Gas mm) | Min/Max Pipe Run (m) | Pre-Charged Run (m) | Add Ref Charge (g/m) | Max Elevation Variance (m) | Supply Air Connection H x W (mm) | Return Air Connection H x W (mm): | Weight Indoor/Outdoor (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PF / PZ | S-3650PF3E / U-36PZ3R5 | 3.6kW Mid Static Compact | 3.6 (1.3 - 4.0) | 3.6 (1.3 - 4.6) | 233 / 217 / 167 | 250 x 800 x 730 | 619 x 824 x 299 | 240/1/50 | Outdoor | - | 8.9 | R32 | 6.35 / 12.70 | 03 / 20 | 7.5 | 10 | 15 / 15 | 186 x 592 | 680 x 200 (no flange) | 25 / 31 |
| PF / PZ | S-3650PF3E / U-50PZ3R5 | 4.6kW Mid Static Compact | 4.6 (1.5 - 5.3) | 4.6 (1.5 - 5.9) | 267 / 250 / 200 | 250 x 800 x 730 | 619 x 824 x 299 | 240/1/50 | Outdoor | - | 10.5 | R32 | 6.35 / 12.70 | 03 / 30 | 10 | 15 | 15 / 15 | 186 x 592 | 680 x 200 (no flange) | 25 / 35 |
| PF / PZ | S-6071PF3E / U-60PZ3R5 | 6.0kW Mid Static Compact | 6.00 (2.0 - 6.3) | 6.00 (1.8 - 7.0) | 350 / 317 / 250 | 250 x 1000 x 730 | 695 x 875 x 320 | 240/1/50 | Outdoor | - | 13.1 | R32 | 6.35 / 12.70 (FCU 9.52 to 6.35, 15.88 to 12.70 reducers supplied in box) | 03 / 40 | 30 | 15 | 15 / 30 | 186 x 792 | 880 x 200 (no flange) | 30 / 43 |
| PF / PZ | S-6071PF3E / U-71PZ3R5 | 7.1kW Mid Static Compact | 6.8 (2.6 - 7.7) | 6.8 (2.1 - 8.1) | 350 / 317 / 250 | 250 x 1000 x 730 | 695 x 875 x 320 | 240/1/50 | Outdoor | - | 14.8 | R32 | 6.35 / 15.88 (FCU 9.52 to 6.35 reducer supplied in box) | 03 / 40 | 30 | 17 | 15 / 30 | 186 x 792 | 880 x 200 (no flange) | 30 / 50 |
| PF / PZ | S-1014PF3E / U-100PZ3R5 | 10.0kW Mid Static Compact | 9.5 (3.0 - 11.5) | 9.5 (3.0 - 14.0) | 534 / 434 / 350 | 250 x 1400 x 730 | 996 x 980 x 370 | 240/1/50 | Outdoor | - | 27.9 | R32 | 9.52 / 15.88 | 05 / 50 | 30 | 45 | 15 / 30 | 186 x 1192 | 1280 x 200 (no flange) | 39 / 83 |
| PF / PZ | S-1014PF3E / U-100PZ3R8 | 10.0kW Mid Static Compact | 9.5 (3.0 - 11.5) | 9.5 (3.0 - 14.0) | 534 / 434 / 350 | 250 x 1400 x 730 | 996 x 980 x 370 | 415/3/50 | Outdoor | - | 11.9 | R32 | 9.52 / 15.88 | 05 / 50 | 30 | 45 | 15 / 30 | 186 x 1192 | 1280 x 200 (no flange) | 39 / 83 |
| PF / PZ | S-1014PF3E / U-125PZ3R5 | 12.5kW Mid Static Compact | 12.1 (3.2 - 13.5) | 12.1 (3.3 - 15.0) | 567 / 484 / 384 | 250 x 1400 x 730 | 996 x 980 x 370 | 240/1/50 | Outdoor | - | 31.9 | R32 | 9.52 / 15.88 | 05 / 50 | 30 | 45 | 15 / 30 | 186 x 1192 | 1280 x 200 (no flange) | 39 / 87 |
| PF / PZ | S-1014PF3E / U-125PZ3R8 | 12.5kW Mid Static Compact 3ph | 12.1 (3.2 - 13.5) | 12.1 (3.3 - 15.0) | 567 / 484 / 384 | 250 x 1400 x 730 | 996 x 980 x 370 | 415/3/50 | Outdoor | - | 12.9 | R32 | 9.52 / 15.88 | 05 / 50 | 30 | 45 | 15 / 30 | 186 x 1192 | 1280 x 200 (no flange) | 39 / 83 |
| PF / PZ | S-1014PF3E / U-140PZ3R5 | 14.0kW Mid Static Compact | 13.4 (3.3 - 15.0) | 13.4 (3.4 - 16.0) | 601 / 534 / 417 | 250 x 1400 x 730 | 996 x 980 x 370 | 240/1/50 | Outdoor | - | 32.9 | R32 | 9.35 / 15.88 | 05 / 50 | 30 | 45 | 15 / 30 | 186 x 1192 | 1280 x 200 (no flange) | 39 / 87 |
| PF / PZ | S-1014PF3E / U-140PZ3R8 | 14.0kW Mid Static Compact 3ph | 13.4 (3.3 - 15.0) | 13.4 (3.4 - 16.0) | 601 / 534 / 417 | 250 x 1400 x 730 | 996 x 980 x 370 | 415/3/50 | Outdoor | - | 13.4 | R32 | 9.35 / 15.88 | 05 / 50 | 30 | 45 | 15 / 30 | 186 x 1192 | 1280 x 200 (no flange) | 39 / 99 |
| PF / PZH | S-1014PF3E / U-100PZH3R5 | 10.0kW Mid Static Deluxe | 9.5 (3.0 - 11.5) | 9.5 (3.0 - 14.0) | 534 / 434 / 350 | 250 x 1400 x 730 | 1416 x 940 x 340 | 240/1/50 | Outdoor | - | 27.9 | R32 | 9.52 / 15.88 | 05 / 85 | 30 | 45 | 15 / 30 | 186 x 1192 | 1280 x 200 (no flange) | 39 / 99 |
| PF / PZH | S-1014PF3E / U-100PZH3R8 | 10.0kW Mid Static Deluxe | 9.5 (3.0 - 11.5) | 9.5 (3.0 - 14.0) | 534 / 434 / 350 | 250 x 1400 x 730 | 1416 x 940 x 340 | 415/3/50 | Outdoor | - | 11.9 | R32 | 9.52 / 15.88 | 05 / 85 | 30 | 45 | 15 / 30 | 186 x 1192 | 1280 x 200 (no flange) | 39 / 99 |
| PF / PZH | S-1014PF3E / U-125PZH3R5 | 12.5kW Mid Static Deluxe | 12.1 (3.2 - 13.5) | 12.1 (3.3 - 15.0) | 567 / 484 / 384 | 250 x 1400 x 730 | 1416 x 940 x 340 | 240/1/50 | Outdoor | - | 31.9 | R32 | 9.52 / 15.88 | 05 / 85 | 30 | 45 | 15 / 30 | 186 x 1192 | 1280 x 200 (no flange) | 39 / 99 |
| PF / PZH | S-1014PF3E / U-125PZH3R8 | 12.5kW Mid Static Deluxe 3ph | 12.1 (3.2 - 13.5) | 12.1 (3.3 - 15.0) | 567 / 484 / 384 | 250 x 1400 x 730 | 1416 x 940 x 340 | 415/3/50 | Outdoor | - | 12.9 | R32 | 9.52 / 15.88 | 05 / 85 | 30 | 45 | 15 / 30 | 186 x 1192 | 1280 x 200 (no flange) | 39 / 99 |
| PF / PZH | S-1014PF3E / U-140PZH3R5 | 14.0kW Mid Static Deluxe | 13.4 (3.3 - 15.0) | 13.4 (3.4 - 16.0) | 601 / 534 / 417 | 250 x 1400 x 730 | 1416 x 940 x 340 | 240/1/50 | Outdoor | - | 32.9 | R32 | 9.52 / 15.88 | 05 / 85 | 30 | 45 | 15 / 30 | 186 x 1192 | 1280 x 200 (no flange) | 39 / 99 |
| PF / PZH | S-1014PF3E / U-140PZH3R8 | 14.0kW Mid Static Deluxe 3ph | 13.4 (3.3 - 15.0) | 13.4 (3.4 - 16.0) | 601 / 534 / 417 | 250 x 1400 x 730 | 1416 x 940 x 340 | 415/3/50 | Outdoor | - | 13.9 | R32 | 9.52 / 15.88 | 05 / 85 | 30 | 45 | 15 / 30 | 186 x 1192 | 1280 x 200 (no flange) | 39 / 99 |
