Panasonic - High Static Ducted
The high static ducted systems, when paired with the Deluxe or Compact range of condensers, deliver class-leading efficiency and advanced features—including splitable fan coil units from 18kW to 22.4kW. The range covers capacities from 6.0kW and 7.0kW in single-phase, up to 10kW to 22.4kW in both single- and three-phase options.
nanoe™ X Air Purification Technology
A Next-Generation Remote Control Solution Optimised for Usability, Whatever Your Needs
Splitable Chassis Design
Maintain quality air 24-hours a day with nanoe™ X technology. nanoe™ X inhibits certain bacteria, viruses, pollens, allergens, mould, and hazardous substances found in PM2.5, providing effective deodorization and improving the air quality.
CONEX goes beyond simple remote control to combine sophistication with simplicity, offering IoT integration that connects directly to a variety of apps for next-generation solutions.
18.0kW to 22.4kW fan coil units feature a splitable design enabling easy installation in difficult places in just 3 easy steps

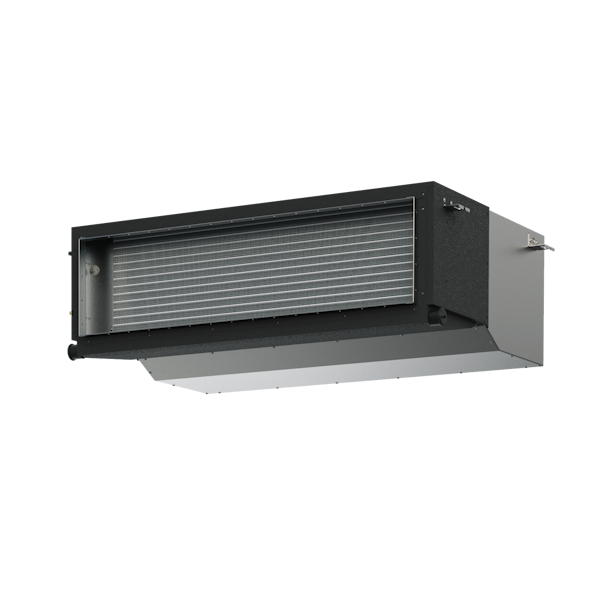

Panasonic High Static Ducted (Compact)
| Series | Model | Description | Cooling (kW) | Heating (kW) | Airflow (l/sec) H/M/L | Indoor Dimensions H x W x D (mm) | Outdoor Dimensions H x W x D (mm) | Power Supply (V/Ph/Hz) | Power Supply Connection | Max Amps (Indoor) | Max Amps (Outdoor) | Refrigerant | Pipe Sizes (Liquid/Gas mm) | Min/Max Pipe Run (m) | Pre-Charged Run (m) | Add Ref Charge (g/m) | Max Elevation Variance (m) | Supply Air Connection H x W (mm) | Return Air Connection H x W (mm): | Weight Indoor/Outdoor (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PE / PZ | S-60PE3R / U-60PZ3R5 | 6.0kW High Static Compact | 6.0 (2.0 - 7.1) | 6.0 (1.8 - 7.6) | 367 / 334 / 267 | 290 x 1200 x 700 | 695 x 875 x 320 | 240/1/50 | Outdoor | - | 13.1 | R32 | 6.35 / 12.70 (FCU 9.52 to 6.35, 15.88 to 12.70 reducers supplied in box) | 03 / 40 | 30 | 15 | 15 / 30 | 196 x 1024 | 196 x 1024 | 31 / 43 |
| PE / PZ | S-71PE3R / U-71PZ3R5 | 7.1kW High Static Compact | 7.10 (2.0 - 7.7) | 7.10 (2.1 - 8.1) | 501 / 434 / 367 | 360 x 1200 x 700 | 695 x 875 x 320 | 240/1/50 | Outdoor | - | 14.8 | R32 | 6.35 / 15.88 (FCU 9.52 to 6.35 reducer supplied in box) | 05 / 40 | 30 | 17 | 15 / 30 | 266 x 1024 | 266 x 1024 | 36 / 50 |
| PE / PZ | S-100PE3R / U-100PZ3R5 | 10.0kW High Static Compact | 10.0 (3.0 - 11.5) | 10.0 (3.0 - 14.0) | 668 / 584 / 484 | 360 x 1200 x 700 | 996 x 980 x 370 | 240/1/50 | Outdoor | - | 27.9 | R32 | 9.52 / 15.88 | 05 / 50 | 30 | 45 | 30 / 15 | 266 x 1024 | 266 x 1024 | 37 / 83 |
| PE / PZ | S-100PE3R / U-100PZ3R8 | 10.0kW High Static Compact 3ph | 10.0 (3.0 - 11.5) | 10.0 (3.0 - 14.0) | 668 / 584 / 484 | 360 x 1200 x 700 | 996 x 980 x 370 | 415/3/50 | Outdoor | - | 11.9 | R32 | 9.52 / 15.88 | 05 / 50 | 30 | 45 | 30 / 15 | 266 x 1024 | 266 x 1024 | 37 / 83 |
| PE / PZ | S-125PE3R / U-125PZ3R5 | 12.5kW High Static Compact | 12.5 (3.2 - 13.5) | 12.5 (3.3 - 15.0) | 835 / 768 / 601 | 430 x 1200 x 700 | 996 x 980 x 370 | 240/1/50 | Outdoor | - | 31.9 | R32 | 9.52 / 15.88 | 05 / 50 | 30 | 45 | 30 / 15 | 336 x 1024 | 336 x 1024 | 41 / 87 |
| PE / PZ | S-125PE3R / U-125PZ3R8 | 12.5kW High Static Compact 3ph | 12.5 (3.2 - 13.5) | 12.5 (3.3 - 15.0) | 835 / 768 / 601 | 430 x 1200 x 700 | 996 x 980 x 370 | 415/1/50 | Outdoor | - | 12.9 | R32 | 9.52 / 15.88 | 05 / 50 | 30 | 45 | 30 / 15 | 336 x 1024 | 336 x 1024 | 41 / 87 |
| PE / PZ | S-140PE3R / U-140PZ3R5 | 14.0kW High Static Compact | 14.0 (3.3 - 15.0) | 14.0 (3.4 - 16.0) | 1002 / 835 / 701 | 430 x 1200 x 700 | 996 x 980 x 370 | 240/1/50 | Outdoor | - | 32.9 | R32 | 9.52 / 15.88 | 05 / 50 | 30 | 45 | 30 / 15 | 336 x 1024 | 336 x 1024 | 50 / 87 |
| PE / PZ | S-140PE3R / U-140PZ3R8 | 14.0kW High Static Compact 3ph | 14.0 (3.3 - 15.0) | 14.0 (3.4 - 16.0) | 1002 / 835 / 701 | 430 x 1200 x 700 | 996 x 980 x 370 | 415/3/50 | Outdoor | - | 13.9 | R32 | 9.52 / 15.88 | 05 / 50 | 30 | 45 | 30 / 15 | 336 x 1024 | 336 x 1024 | 50 / 87 |
Panasonic High Static Ducted (Deluxe)
| Series | Model | Description | Cooling (kW) | Heating (kW) | Airflow (l/sec) H/M/L | Indoor Dimensions H x W x D (mm) | Outdoor Dimensions H x W x D (mm) | Power Supply (V/Ph/Hz) | Power Supply Connection | Max Amps (Indoor) | Max Amps (Outdoor) | Refrigerant | Pipe Sizes (Liquid/Gas mm) | Min/Max Pipe Run (m) | Pre-Charged Run (m) | Add Ref Charge (g/m) | Max Elevation Variance (m) | Supply Air Connection H x W (mm) | Return Air Connection H x W (mm): | Weight Indoor/Outdoor (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PE / PZH | S-71PE3R / U-71PZH3R5 | 7.1kW High Static Deluxe | 7.10 (2.2 - 9.0) | 8.0 (2.0 - 9.0) | 501 / 434 / 367 | 360 x 1200 x 700 | 996 x 940 x 340 | 240/1/50 | Outdoor | - | 19.6 | R32 | 6.35 / 15.88 (FCU 9.52 to 6.35 reducer supplied in box) | 05 / 50 | 30 | 45 | 15 / 30 | 266 x 1024 | 266 x 1024 | 36 / 66 |
| PE / PZH | S-100PE3R / U-100PZH3R5 | 10.0kW High Static Deluxe | 10.0 (3.1 - 12.5) | 11.2 (3.1 - 14.0) | 668 / 584 / 484 | 360 x 1200 x 700 | 1416 x 940 x 340 | 240/1/50 | Outdoor | - | 27.4 | R32 | 9.52 / 15.88 | 05 / 85 | 30 | 45 | 30 / 15 | 266 x 1024 | 266 x 1024 | 37 / 99 |
| PE / PZH | S-100PE3R / U-100PZH3R8 | 10.0kW High Static Deluxe 3ph | 10.0 (3.1 - 12.5) | 11.2 (3.1 - 14.0) | 668 / 584 / 484 | 360 x 1200 x 700 | 1416 x 940 x 340 | 415/3/50 | Outdoor | - | 9.7 | R32 | 9.52 / 15.88 | 05 / 85 | 30 | 45 | 30 / 15 | 266 x 1024 | 266 x 1024 | 37 / 99 |
| PE / PZH | S-125PE3R / U-125PZH3R5 | 12.5kW High Static Deluxe | 12.5 (3.2 - 14.0) | 14.0 (3.2 - 16.0) | 835 / 768 / 601 | 430 x 1200 x 700 | 1416 x 940 x 340 | 240/1/50 | Outdoor | - | 30.6 | R32 | 9.52 / 15.88 | 05 / 85 | 30 | 45 | 30 / 15 | 336 x 1024 | 336 x 1024 | 41 / 99 |
| PE / PZH | S-125PE3R / U-125PZH3R8 | 12.5kW High Static Deluxe 3ph | 12.5 (3.2 - 14.0) | 14.0 (3.2 - 16.0) | 835 / 768 / 601 | 430 x 1200 x 700 | 1416 x 940 x 340 | 415/3/50 | Outdoor | - | 10.8 | R32 | 9.52 / 15.88 | 05 / 85 | 30 | 45 | 30 / 15 | 336 x 1024 | 336 x 1024 | 41 / 99 |
| PE / PZH | S-140PE3R / U-140PZH3R5 | 14.0kW High Static Deluxe | 14.0 (3.3 - 16.0) | 16.0 (3.3 - 18.0) | 1002 / 835 / 701 | 430 x 1200 x 700 | 1416 x 940 x 340 | 240/1/50 | Outdoor | - | 32.7 | R32 | 9.52 / 15.88 | 05 / 85 | 30 | 45 | 30 / 15 | 336 x 1024 | 336 x 1024 | 41 / 99 |
| PE / PZH | S-140PE3R / U-140PZH3R8 | 14.0kW High Static Deluxe 3ph | 14.0 (3.3 - 16.0) | 16.0 (3.3 - 18.0) | 1002 / 835 / 701 | 430 x 1200 x 700 | 1416 x 940 x 340 | 415/3/50 | Outdoor | - | 11.4 | R32 | 9.52 / 15.88 | 05 / 85 | 30 | 45 | 30 / 15 | 336 x 1024 | 336 x 1024 | 41 / 99 |
| PE / PZH | S-160PE3R / U-160PZH3R5 | 16.0kW High Static Deluxe | 16.0 (5.2 - 18.0) | 18.0 (5.5 - 20.0) | 1002 / 835 / 701 | 430 x 1200 x 700 | 1500 x 980 x 370 | 240/1/50 | Indoor & Outdoor | 2.61 | 29 | R32 | 9.52 / 19.05 | 05 / 100 | 30 | 45 | 30 / 30 | 336 x 1024 | 336 x 1024 | 50 / 117 |
| PE / PZH | S-160PE3R / U-160PZH3R8 | 16.0kW High Static Deluxe 3ph | 16.0 (5.2 - 18.0) | 18.0 (5.5 - 20.0) | 1002 / 835 / 701 | 430 x 1200 x 700 | 1500 x 980 x 370 | 415/3/50 | Indoor & Outdoor | 2.61 | 10.5 | R32 | 9.52 / 19.05 | 05 / 100 | 30 | 45 | 30 / 30 | 336 x 1024 | 336 x 1024 | 50 / 115 |
Panasonic High Static Large Ducted (Deluxe)
| Series | Model | Description | Cooling (kW) | Heating (kW) | Airflow (l/sec) H/M/L | Indoor Dimensions H x W x D (mm) | Outdoor Dimensions H x W x D (mm) | Power Supply (V/Ph/Hz) | Power Supply Connection | Max Amps (Indoor) | Max Amps (Outdoor) | Refrigerant | Pipe Sizes (Liquid/Gas mm) | Min/Max Pipe Run (m) | Pre-Charged Run (m) | Add Ref Charge (g/m) | Max Elevation Variance (m) | Supply Air Connection H x W (mm) | Return Air Connection H x W (mm): | Weight Indoor/Outdoor (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PE / PZH | S-180PE4R / U-180PZH3R5 | 18.0kW High Static Deluxe | 18.0 (5.5 - 20.0) | 20.0 (5.5 - 22.4) | 1200 / 1050 / 883 | 486 x 1456 x 916 | 1500 x 980 x 370 | 415/3/50 | Indoor & Outdoor | 5.6 | 32.5 | R32 | (9.52 / 19.05) / (9.52 / 25.4) | 05 / 100 | 30 | 45 / 60 | 30 / 30 | 320 x 964 | 300 x 1070 | 82 / 117 |
| PE / PZH | S-180PE4R / U-180PZH3R8 | 18.0kW High Static Deluxe 3ph | 18.0 (5.5 - 20.0) | 20.0 (5.5 - 22.4) | 1200 / 1050 / 883 | 486 x 1456 x 916 | 1500 x 980 x 370 | 415/3/50 | Indoor & Outdoor | 5.6 | 11.5 | R32 | (9.52 / 19.05) / (9.52 / 25.4) | 05 / 100 | 30 | 45 / 60 | 30 / 30 | 320 x 964 | 300 x 1070 | 82 / 115 |
| PE / PZH | S-200PE4R / U-200PZH3R8 | 20.0kW High Static Deluxe 3ph | 20.0 (5.7 - 22.4) | 22.4 (5.0 - 25.0) | 1200 / 1050 / 883 | 486 x 1456 x 916 | 1500 x 980 x 370 | 415/3/50 | Indoor & Outdoor | 5.7 | 15 | R32 | (12.07 / 19.05) (12.07 / 25.4) | 05 / 100 | 30 | 80 | 30 / 30 | 320 x 964 | 300 x 1070 | 83 / 127 |
| PE / PZH | S-224PE4R / U-224PZH3R8 | 22.4kW High Static Deluxe 3ph | 22.4 (5.7 - 25.0) | 25.0 (4.9 - 28.0) | 1400 / 1200 / 983 | 486 x 1456 x 916 | 1500 x 980 x 370 | 415/3/50 | Indoor & Outdoor | 6.3 | 16.5 | R32 | (12.07 / 19.05) (12.07/ 25.4) | 05 / 100 | 30 | 80 | 30 / 30 | 320 x 964 | 300 x 1070 | 87 / 127 |
