Panasonic - Mini Cassettes

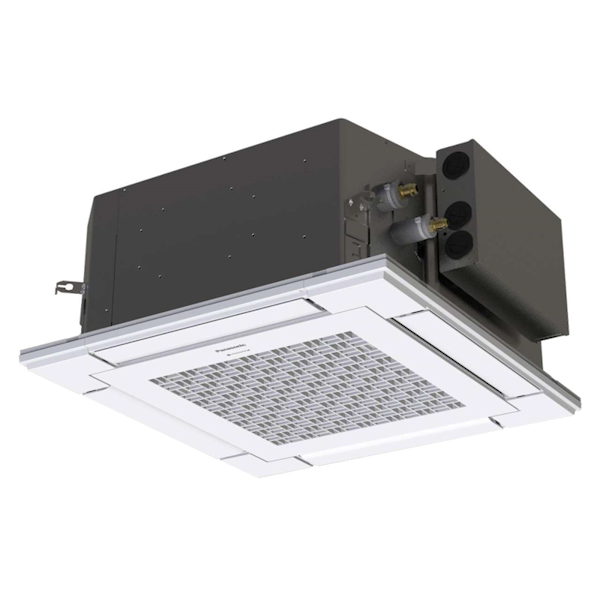

The redesigned Low Profile Mini Cassette is the perfect solution for small commercial spaces and retrofit applications, particularly in environments with lower ceilings. The unit offers market-leading energy efficiency with an advanced DC fan motor with variable speed and a newly designed heat exchanger that optimizes power consumption. Its built-in drain pump, with an impressive 850mm lift, efficiently manages condensation, while multi-directional airflow ensures even, comfortable cooling or heating across the space. Whether for commercial use or retrofitting into existing systems, the Low Profile Mini Cassette provides a powerful, space-saving solution with superior performance.
nanoe™ X Air Purification Technology
Compact Design
Powerful Drain Pump
Maintain quality air 24-hours a day with nanoe™ X technology. nanoe™ X inhibits certain bacteria, viruses, pollens, allergens, mould, and hazardous substances found in PM2.5, providing effective deodorization and improving the air quality.
It fits easily into a standard 60x60cm ceiling grid without altering the bar configuration, making it ideal for spaces with lower ceilings or retrofit applications.
Built-in drain pump with a lift capability of 850mm, effectively managing condensation and improving system performance.

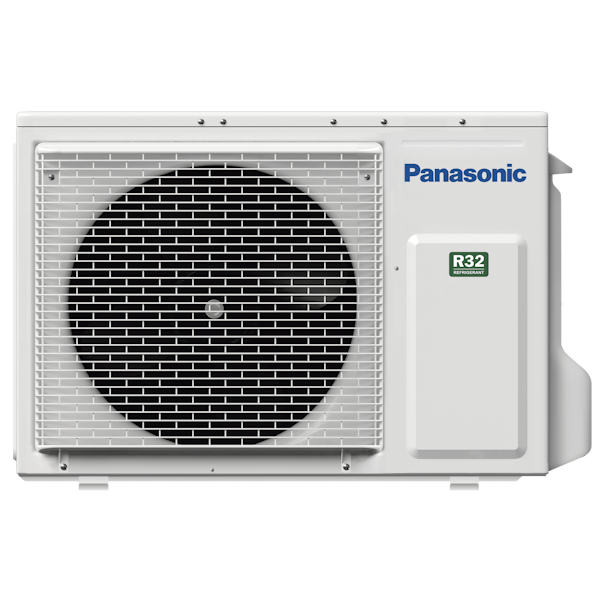

| Series | Model | Description | Cooling (kW) | Heating (kW) | Airflow (l/sec) H/M/L | Indoor Dimensions H x W x D (mm): | Outdoor Dimensions H x W x D (mm): | Power Supply (V/Ph/Hz) | Power Supply Connection | Max Amps (Outdoor) | Refrigerant | Pipe Sizes (Liquid/Gas mm) | Min/Max Pipe Run (m) | Pre-Charged Run (m) | Add Ref Charge (g/m) | Max Elevation Variance (m) | Weight Indoor/Outdoor (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PY / PZ | S-25PYE3 / U-25PZ3R5 | 2.5kW Mini Cassette | 2.5 | 3.2 | 141 | 243 x 575 x 575 | 619 x 824 x 299 | 240/1/50 | Outdoor | 8.9 | R32 | 6.35 / 12.70 | 03 / 20 | 7.5 | 10 | 10 | 20 / 34 |
| PY / PZ | S-36PY3E / U-36PZ3R5 | 3.6kW Mini Cassette | 3.6 | 3.6 | 158 | 243 x 575 x 575 | 619 x 824 x 299 | 240/1/50 | Outdoor | 8.9 | R32 | 6.35 / 12.70 | 03 / 20 | 7.5 | 10 | 15 | 20 / 34 |
| PY / PZ | S-50PY3E / U-50PZ3R5 | 5.0kW Mini Cassette | 5 | 5 | 200 | 243 x 575 x 575 | 619 x 824 x 299 | 240/1/50 | Outdoor | 10.5 | R32 | 6.35 / 12.70 | 03 / 30 | 10 | 15 | 15 | 20 / 38 |
| PY / PZ | S-60PY3E / U-60PZ3R5 | 6.0kW Mini Cassette | 6 | 6 | 233 | 243 x 575 x 575 | 695 x 875 x 320 | 240/1/50 | Outdoor | 13.1 | R32 | 6.35 / 12.70 | 03 / 40 | 30 | 10 | 30 / 15 | 15 / 43 |
