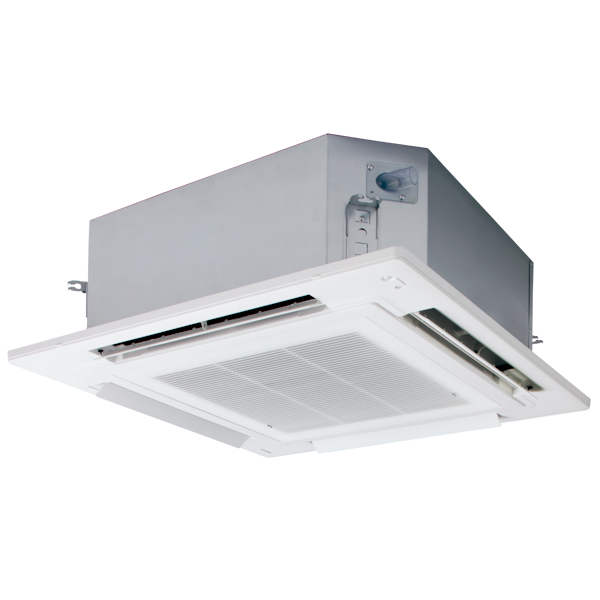

Panasonic - Full Size 4-Way Cassettes
Featuring uniform cooling, easy installation, and with a sleek exterior, this unit is the perfect match for all commercial applications. Available in four sizes from 6.0kW to 13.6kW.
nanoe™ X Air Purification Technology
High-Ceiling Installation
Powerful Drain Pump
Maintain quality air 24-hours a day with nanoe™ X technology. nanoe™ X inhibits certain bacteria, viruses, pollens, allergens, mould, and hazardous substances found in PM2.5, providing effective deodorization and improving the air quality.
The units can be installed in rooms with high ceilings, where they provide ample floor-level heating in the winter (Up to 5 m for 10.0kW+ models).
Built-in drain pump with a lift capability of 850mm, effectively managing condensation and improving system performance.
| Series | Model | Description | Cooling (kW) | Heating (kW) | Airflow (l/sec) H/M/L | Indoor Dimensions H x W x D (mm): | Outdoor Dimensions H x W x D (mm): | Power Supply (V/Ph/Hz) | Power Supply Connection | Max Amps (Outdoor) | Refrigerant | Pipe Sizes (Liquid/Gas mm) | Min/Max Pipe Run (m) | Pre-Charged Run (m) | Add Ref Charge (g/m) | Max Elevation Variance (m) | Weight Indoor/Outdoor (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PU / PZ | S-6071PU3E / U-60PZ3R5 | 6.0kW Cassette | 6 | 6 | 350 / 267 / 217 | 256 x 840 x 840 | 695 x 875 x 320 | 240/1/50 | Outdoor | 13.1 | R32 | 6.35 / 12.70 (FCU 9.52 to 6.35, 15.88 to 12.70 reducers supplied in box) | 03 / 40 | 30 | 15 | 30 / 15 | 20 / 43 |
| PU / PZ | S-6071PU3E / U-71PZ3R5 | 7.1kW Cassette | 7.1 | 7.1 | 367 / 267 / 217 | 256 x 840 x 840 | 695 x 875 x 320 | 240/1/50 | Outdoor | 14.8 | R32 | 6.35 / 15.88 (FCU 9.52 to 6.35 reducer supplied in box) | 04 / 40 | 30 | 17 | 30 / 15 | 20 / 50 |
| PU / PZ | S-1014PU3E / U-100PZ3R5 | 10.kW Cassette | 10 | 10 | 601 / 434 / 300 | 319 x 840 x 840 | 996 x 980 x 370 | 240/1/50 | Outdoor | 27.9 | R32 | 9.52 / 15.88 (No indoor reducers required) | 05 / 50 | 30 | 45 | 30 / 15 | 25 / 83 |
| PU / PZ | S-1014PU3E / U-100PZ3R8 | 10.kW Cassette 3ph | 10 | 10 | 601 / 434 / 300 | 319 x 840 x 840 | 996 x 980 x 370 | 415/3/50 | Outdoor | 11.9 | R32 | 9.35 / 15.88 (No indoor reducers required) | 05 / 50 | 30 | 45 | 30 / 15 | 25 / 90 |
| PU / PZ | S-1014PU3E / U-125PZ3R5 | 12.kW Cassette | 12.5 | 12.5 | 617 / 450 / 317 | 319 x 840 x 840 | 996 x 980 x 370 | 240/1/50 | Outdoor | 31.9 | R32 | 9.35 / 15.88 (No indoor reducers required) | 05 / 50 | 30 | 45 | 30 / 15 | 25 / 87 |
| PU / PZ | S-1014PU3E / U-125PZ3R8 | 12.kW Cassette 3ph | 12.5 | 12.5 | 617 / 450 / 317 | 319 x 840 x 840 | 996 x 980 x 370 | 415/3/50 | Outdoor | 12.9 | R32 | 9.35 / 15.88 (No indoor reducers required) | 05 / 50 | 30 | 45 | 30 / 15 | 25 / 87 |
| PU / PZ | S-1014PU3E / U-140PZ3R5 | 14.kW Cassette | 14 | 14 | 617 / 450 / 317 | 319 x 840 x 840 | 996 x 980 x 370 | 240/1/50 | Outdoor | 32.9 | R32 | 9.35 / 15.88 (No indoor reducers required) | 05 / 50 | 30 | 45 | 30 / 15 | 25 / 87 |
| PU / PZ | S-1014PU3E / U-140PZ3R8 | 14.kW Cassette 3ph | 14 | 14 | 617 / 450 / 317 | 319 x 840 x 840 | 996 x 980 x 370 | 415/3/50 | Outdoor | 13.4 | R32 | 9.35 / 15.88 (No indoor reducers required) | 05 / 50 | 30 | 45 | 30 / 15 | 25 / 87 |
