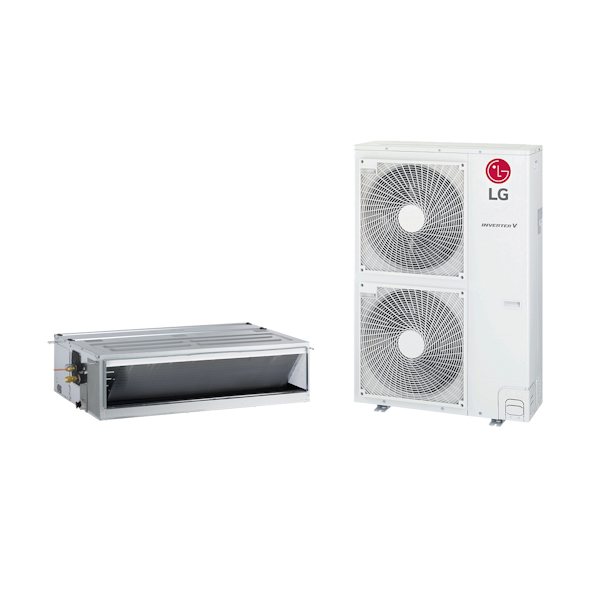

LG - Mid Static Ducted
LG’s mid static pressure ducted air conditioning range is designed for residential and light commercial applications. These units offer a balance between performance, flexibility, and energy efficiency, making them ideal for installations with limited space.
Wi-Fi Smart Control Compatible
The LG ThinQ® App lets you access and control your air conditioner with your smartphone even when you’re not at home, so you can come home to comfort. (The Optional Wi-Fi module is sold separately.)
High Head Drain Pump
The included high head drain pump automatically drains water up to 700mm of drain-head height.
Zone Control Solution
Compatible with LG’s 8 zone 24V or 240V damper controller and premium or deluxe wall controllers, this offers the complete all in one solution.
| Series | Model | Description | Cooling (kW) | Heating (kW) | Airflow (l/sec) H/M/L | Indoor Dimensions H x W x D (mm) | Outdoor Dimensions H x W x D (mm) | Power Supply (V/Ph/Hz) | Power Supply Connection | Max Amps (Outdoor) | Max Fuse Amps | Refrigerant Type | Pipe Sizes (Liquid/Gas mm) | Min/Max Pipe Run (m) | Pre-Charged Run (m) | Add Ref Charge (g/m) | Max Elevation (m) | Supply Air Connection H x W (mm) | Return Air Connection H x W (mm): | Weight Indoor/Outdoor (kg)2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Slim Ducted | UMN70M1 | 6.8kW Mid Static | 6.8 (2.7 - 8.0) | 7.5 (3.0 - 9.0) | 300 | 270 x 900 x 700 | 834 x 950 x 330 | 240/1/50 | Outdoor | 17 | 25 | R32 | 9.52 / 15.88 | 05 / 50 | 10 | 40 | 30 | 200 x 857 | 231 x 849 | 24 / 59 |
| Slim Ducted | UMN85M1 | 8.0kW Mid Static | 8.0 (3.1 - 9.0) | 9.0 (3.6 - 10.1) | 367 | 270 x 900 x 700 | 834 x 950 x 330 | 240/1/50 | Outdoor | 17 | 25 | R32 | 9.52 / 15.88 | 05 / 50 | 10 | 40 | 30 | 200 x 857 | 231 x 849 | 25 / 59 |
| Slim Ducted | UMN100M2 | 9.5kW Mid Static | 9.5 (3.8 - 12.5) | 10.8 (4.3 - 13.4) | 533 | 270 x 1250 x 700 | 1380 x 950 x 330 | 240/1/50 | Outdoor | 17 | 40 | R32 | 9.52 / 15.88 | 05 / 85 | 20 | 50 | 30 | 197 x 1206 | 230 x 1205 | 37 / 89 |
| Slim Ducted | UMN125M2 | 12.3kW Mid Static | 12.3 (4.8 - 14.0) | 13.5 (5.4 - 15.8) | 633 | 270 x 1250 x 700 | 1380 x 950 x 330 | 240/1/50 | Outdoor | 28 | 40 | R32 | 9.52 / 15.88 | 05 / 85 | 20 | 50 | 30 | 197 x 1206 | 230 x 1205 | 37 / 89 |
| Slim Ducted | UMN140M3 | 13.8kW Mid Static | 13.8 (5.4 - 15.7) | 15.5 (6.2 - 17.5) | 667 | 360 x 1250 x 700 | 1380 x 950 x 330 | 240/1/50 | Outdoor | 28 | 40 | R32 | 9.52 / 15.88 | 05 / 85 | 20 | 50 | 30 | 291 x 1206 | 320 x 1205 | 41 / 89 |
