LG - High Static Ducted
The LG high static ducted series is a ducted air conditioning solution designed for residential and light commercial spaces. These units offer powerful airflow, flexible installation, and advanced control options, making them ideal for multi-zone and large open-plan environments.
Splitable Indoor Units
Zone Control Solution
Large Capacity Units

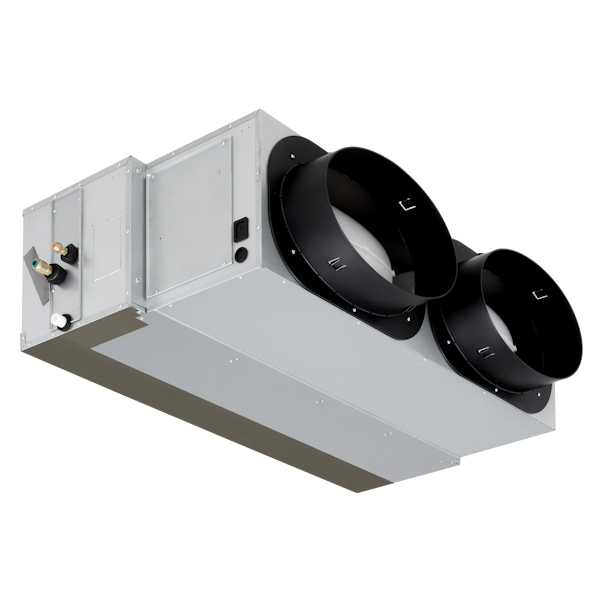

The models from 8.5kW to 15.2kW feature a splitable indoor unit for installation flexibility and a built-in return air plenum for cost saving.
Compatible with LG’s 8 zone 24V or 240V damper controller and premium or deluxe wall controllers, this offers the complete all in one solution.

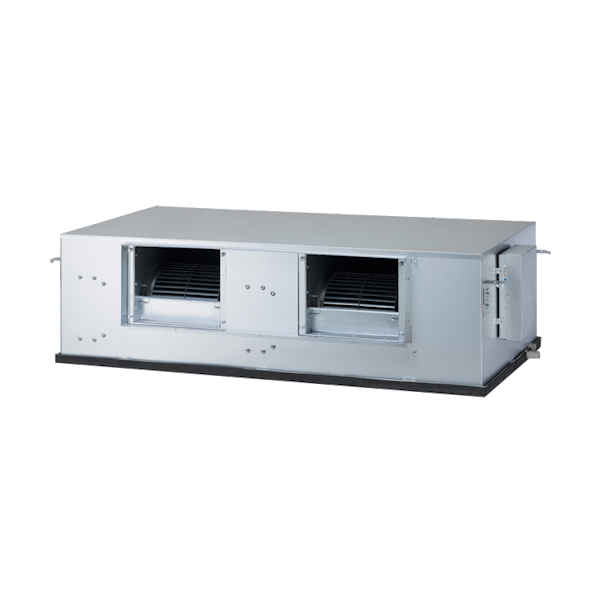

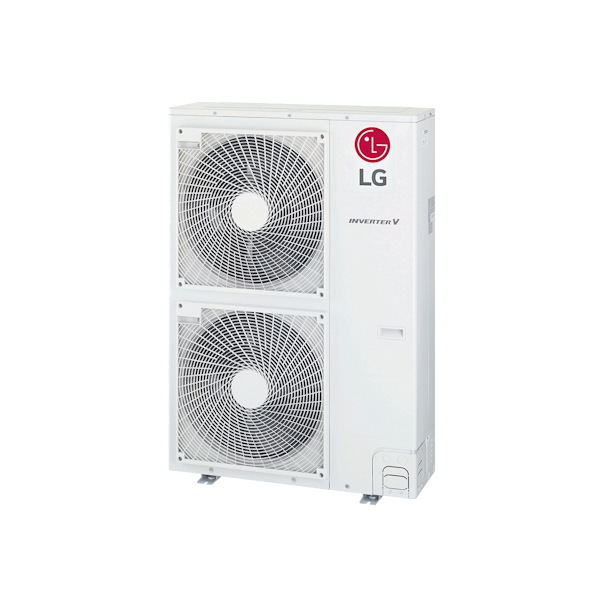

The high static pressure range also includes a 18kW and 20kW high capacity unit with horizontal discharge condensing units.
| Series | Model | Description | Cooling (kW) | Heating (kW) | Airflow (l/sec) H/M/L | Indoor Dimensions H x W x D (mm) | Outdoor Dimensions H x W x D (mm) | Power Supply (V/Ph/Hz) | Power Supply Connection | Max Amps (Outdoor) | Max Fuse Amps | Refrigerant Type | Pipe Sizes (Liquid/Gas mm) | Min/Max Pipe Run (m) | Pre-Charged Run (m) | Add Ref Charge (g/m) | Max Elevation (m) | Supply Air Connection H x W (mm) | Return Air Connection H x W (mm): | Weight Indoor/Outdoor (kg)2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| High Static Ducted | UHN85B7 | 8.8kW High Static | 8.8 (2.5 - 9.6) | 9.4 (2.7 - 11.1) | 533 | 400 x 1320 x 534 | 834 x 950 x 330 | 240/1/50 | Outdoor | 17 | 25 | R32 | 9.52 / 15.88 | 05 / 50 | 10 | 40 | 30 | 287 x 840 | 317 x 1172 | 48 / 59 |
| High Static Ducted | UHN100B7 | 10.5kW High Static | 10.5 (3.2 - 13.0) | 13.0 (3.4 - 13.7) | 700 | 400 x 1320 x 534 | 1380 x 950 x 330 | 240/1/50 | Outdoor | 29 | 40 | R32 | 9.52 / 15.88 | 05 / 85 | 20 | 50 | 30 | 287 x 840 | 317 x 1172 | 48 / 89 |
| High Static Ducted | UHN125B7 | 12.5kW High Static | 12.5 (4.0 - 14.8) | 15.0 (4.0 - 16.5) | 833 | 400 x 1320 x 534 | 1380 x 950 x 330 | 240/1/50 | Outdoor | 29 | 40 | R32 | 9.52 / 15.88 | 05 / 85 | 20 | 50 | 30 | 287 x 840 | 317 x 1172 | 51 / 89 |
| High Static Ducted | UHN150B7 | 15.0kW High Static | 15.0 (4.8 - 15.8) | 17.0 (4.8 - 18.0) | 1000 | 400 x 1320 x 534 | 1380 x 950 x 330 | 240/1/50 | Outdoor | 29 | 40 | R32 | 9.52 / 15.88 | 05 / 85 | 20 | 50 | 30 | 287 x 840 | 317 x 1172 | 51 / 89 |
| High Static Ducted | B62AWYN9L6 / U7L6 | 18.0kW High Static | 18.0 (4.8 - 19.8) | 20.6 (4.8 - 20.6) | 1333 | 458 x 1563 x 791 | 1625 x 1090 x 380 | 415/3/50 | Outdoor | 24 | 30 | R410A | 12.70 / 22.20 | 75 | 15 | 70 | 30 | 286 x 1044 | 392 x 1368 | 89 / 144 |
| High Static Ducted | B70AWYN9L6 / U7L6 | 20.0kW High Static | 20.0 (8.0 - 22.0) | 22.6 (9.0 - 24.9) | 1333 | 458 x 1563 x 791 | 1625 x 1090 x 380 | 415/3/50 | Outdoor | 24 | 30 | R410A | 12.70 / 22.20 | 75 | 15 | 70 | 30 | 286 x 1044 | 392 x 1368 | 89 / 144 |
